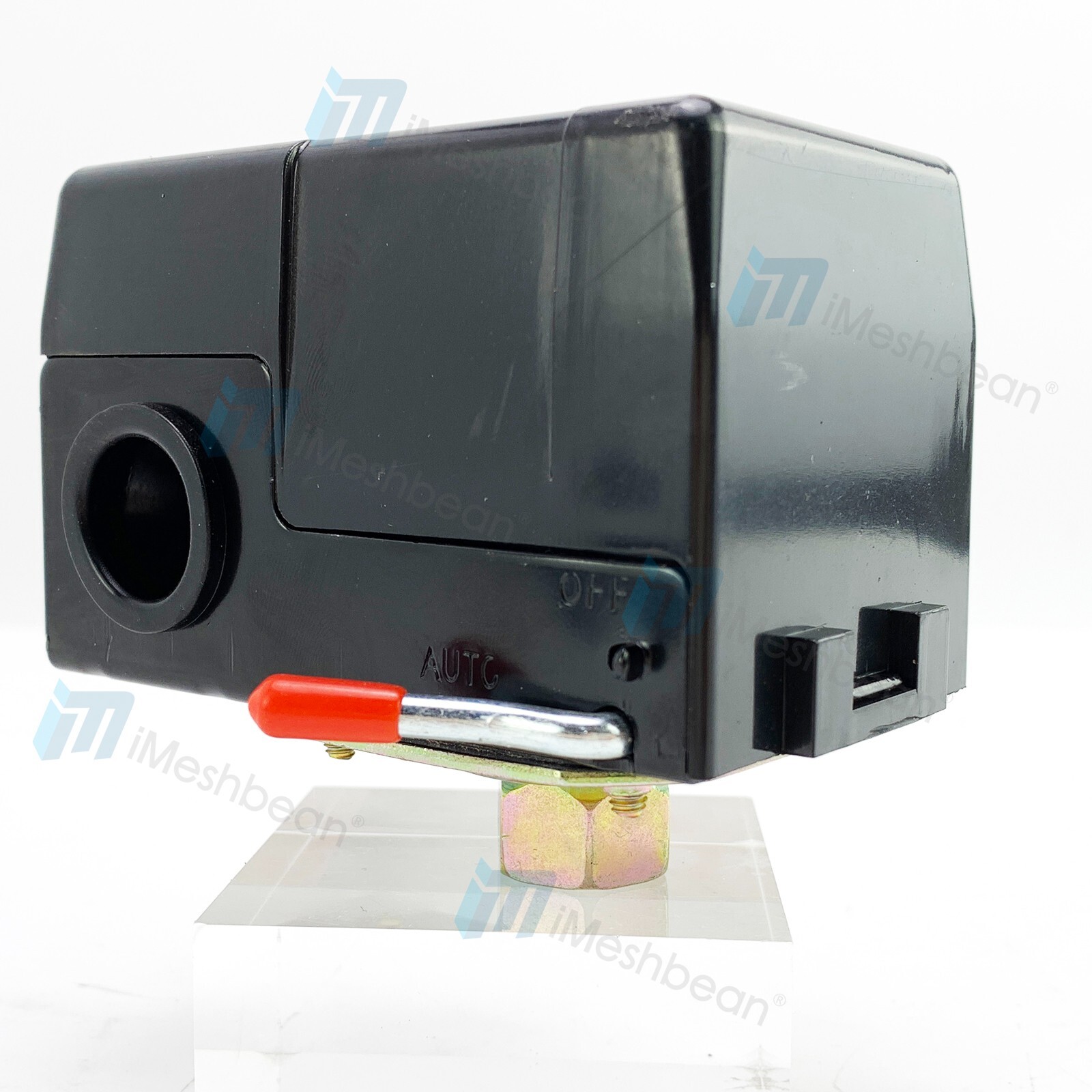

Pressure Switch Valve For Air Compressor

Air Compressor Pressure Switch, 90-125 psi Pressure Switch for Air Compressor, Heavy Duty 26A with Unloader & On/Off Lever Bullet Point

• ★【Heavy-duty air compressor switch】If the switches you have been using are burning out and melting contacts, this is a great high-quality heavy-duty replacement switch! This switch is rated at (1-Phase)  20 Amps at 120V AC, (3-Phase)9.6amps-240VAC230V. The switch is set to turn on at 90 PSI and turn off at 125 PSI. The pressure settings are adjustable 30-40+- PSI. This switch comes equipped with and on/off switch and also an unloader valve which can or cannot be used depending on what your compressor calls for. This is a universal switch commonly used as a replacement / upgrade with Furnas, Square D, Sunny, Lefoo, and many more compressors! This will work as long as the pressure settings are correct or close enough to adjust the switch to the exact pressure you use. This switch requires one 1/4" air inlet from the tank.
• ★【Pressure Switch Specification】1/4" NPT Single Female Port；1/4"" Compression Unloader Valve Connection; Pressure setting：90-125 psi; Cut-In Pressure 30 Psi; Cut-Off Pressure 145 Psi Pressure Differential: 30-40 Psi; Amp Rating (1-Phase) 20amps-120V AC / 12amps-40V AC;3-Phase:9.6amps-240VAC
• ★【Durable& Sturdy Air Compressor Pressure Switch】 The pressure switch is made of high quality steel and plastic, thermoplastic finished, features heavy duty 26A contacts -ensures longer service life and usability; durable and reliable to use
• ★【Perfect Pressure Switch for Air Compressor】The Air Compressor pressure control switch is diaphragm actuated；The air compressor pressure switch monitors the pressure of compressed air moving in and out from the air tank -helps maintain a proper level of pressure inside a compressor. Ensures system stability and prevents overloading and energy wastage
• ★【Easy to Operate】This air compressor pressure switch is equipped with an Unloader & on / off lever ,easy to install and to adjust；With this pressure switch, you can adjust the pressure of the pump, and you can set the adaptive pressure according to the work needs. 2-spring design of water pump pressure switch allows for adjustment of cut-in and cut-out pressure settings；
• ★【Widely Used】This air compressor pressure switch is suitable for 90-125 Psi air compressors.

Pictures Description Features:

• Durable: ABS shell + Iron galvanized connector + Brass control valve+Silver Contact, durable and anti-corrosion.
• Size: Thread: G1/4, Pressure Range: 90-125PSI, Maximum Voltage: 240V, Maximum MAP Current: 20Ap.
• Adjustable Air Outlet: The air pressure at the brass joint is adjustable, which prevents the air pressure from being too high or too small so as to keep stable working.
• Application: Air compressor pressure switch Control valve is designed to control and adjust air compressor pressure and better for high efficiency working.

Specifications

• Number of Pressure Sensing Connection Ports: One 1/4" Female NPT (Note: 1/4" NPT Measures About 1/2" In Diameter)
• Unloader Connection Port: 1/4" Compression Which Accepts 1/4" Outside Diameter Copper Or High Pressure Tubing
• Preset On Pressure: 90 PSI
• Preset Off Pressure:125 PSI
• Differential: 30-40PSI
• Can Be Used With Single Or Three Phase
• Can Be Used With 110 - 240 Volts Depending On Amperage And Phase
• Good Up To 20 Amps Of Continuous Current. (Note: If being used with a magnetic starter the amperage does not matter since all the main power is going through the starter not the pressure switch.)
